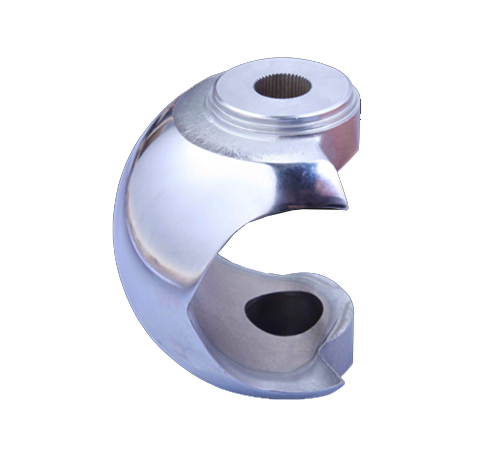

Special Ball for Ball Valve

Size: NPS 1-24 (DN25-600)

Pressure Rating: Class 150~300(PN16~100)

Base Material: ASTM A105, A350 LF2, A182 F304, A182 F316, A182 F6A, A182 F51, A182 F53, A182 F55, A564 630(17-4PH), Monel, Inconel.

Coatings: ENP，Chrome Plating，Tungsten Carbide，Chrome Carbide，Stellite，Inconel，Special.

Support Type: Stem

Drive: Spine Hole

Roundness: 0.01-0.02

Roughness: Ra0.2-Ra0.4

Coaxiality: 0.05

Packaging Detail: wooden cases; pallet; containers

Used: large and medium oil, gas, water conservancy, pharmaceuticals,Chemical, heating equipment industry

We can also produce according to customer's size.
